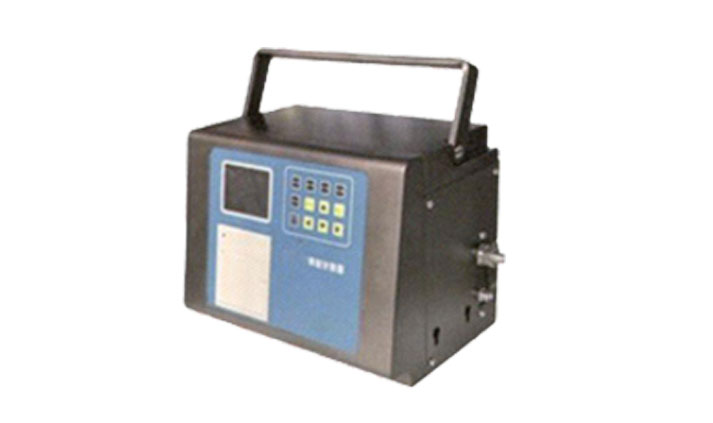

Portable Particle Counter

Overview

       The portable particle counter is developed based on the light blocking principle and is used to detect the size and quantity of solid particles in liquids. It can be widely applied in aerospace, power, petroleum, chemical, transportation, ports, metallurgy, machinery, automotive manufacturing, and other fields. It is suitable for detecting solid particle contamination in hydraulic oil, lubricating oil, transformer oil (insulating oil), turbine oil (turbine oil), gear oil, engine oil, aviation kerosene, water-based hydraulic oil, and other oils.

Main Features

• High-precision sensor ensures high resolution and accuracy.

• Precision sampling measurement system ensures constant sampling speed and precise control of sampling volume.

• Color LCD display with touch-key operation.

• Built-in particle contamination standards such as GB/T14039-2002 (ISO4406:1999), NAS1638, GJB-420A, GJB-420B, etc. Custom standards can be added as per user requirements.

• Data storage function for easy archiving, retrieval, and analysis of test data.

• Built-in printer for direct printing of test results.

• Standard RS232 serial port with optional interface software for external computer connection, facilitating data classification and retrieval.

• Calibration and verification according to standards such as GB/T18854-2002 (ISO11171-1999, JJG066-95).

• Suitable for bottle sampling or online detection.

Main Technical Parameters

• Particle size detection range: 1um～400um

• Detection accuracy: ±0.5 level

• Sensitivity: 1um or 4um(c)

• Number of detection channels: 8 channels with particle size settings from 1um or 4um(c) to 100um

• Sampling flow rate: 5ml/min～60ml/min (adjustable)

• Sample viscosity: <100cst (optional pressure bottle sampler for samples with viscosity up to 350cst)

• Sample temperature: -10℃～80℃

• Data storage capacity: 200 sets

• Data output methods: screen display; built-in printer (optional); output to external computer (optional)

• Power supply: 100V-265VAC (50Hz-60Hz), or built-in battery

• Operating temperature: -20℃～50℃

• Dimensions: 310mm*260mm*240mm

• Weight: 13Kg
