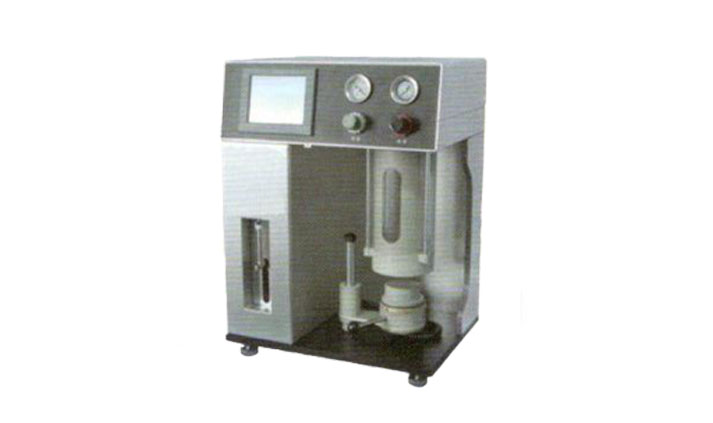

Desktop Particle Counter

Overview

This product is developed based on GB/T18854-2002 (IS011171-1999) and other national and international standards, using the light obstruction method (light extinction method) principle. It is used to detect the size and quantity of solid particles in liquids and can be widely applied in aerospace, power, petroleum, chemical, transportation, ports, metallurgy, machinery, automotive manufacturing, and other fields. It can test the solid particle contamination level of hydraulic oil, lubricating oil, transformer oil (insulating oil), turbine oil (turbine oil), gear oil, engine oil, aviation kerosene, water-based hydraulic oil, etc., as well as detect insoluble particles in organic liquids and polymer solutions.

Main Features

• Uses the light obstruction method (light extinction method), featuring fast detection, strong anti-interference, high accuracy, and good repeatability.

• Precision syringe-type sampling system ensures constant sampling speed and precise control of sampling volume.

• Positive/negative pressure sampling chamber for sample degassing and high-viscosity sample testing.

• Large-screen color LCD touch screen with graphical menu display and touch operation for simplicity and convenience.

• Built-in particle contamination standards: GB/T14039, ISO4406, NAS1638, JBT9737.1, SAE749D, GJB-420A, GJB-420B, DL/T1096, etc. Custom standards can be added per user requirements.

• Data storage function for easy archiving, retrieval, and analysis of test data.

• Built-in printer for direct printing of test reports.

• Built-in Chinese input method for Chinese annotations in test reports.

• RS232 interface, with optional data software for external computer control and data processing.

• Magnetic stirring ensures uniform particle distribution in samples for reliable results. Unique anti-magnetic isolation device prevents magnetic particles from being adsorbed to the bottom of the sample bottle, ensuring uniform particle distribution.

Main Technical Parameters

• Light source: Semiconductor laser

• Particle size detection range: 1μm～400μm

• Number of detection channels: 16 channels for 1μm or 4μm (c) to 100μm, with customizable size channels

• Sampling method: Bottle-type

• Sampling volume: 0.2～100ml, adjustable in 0.1ml increments

• Sampling volume accuracy: Better than ±1%

• Sampling speed: 5ml/min～80ml/min, adjustable

• Maximum vacuum in sampling chamber: 0.08MPa

• Maximum pressure in sampling chamber: 0.7MPa

• Sample viscosity: ＜350cst

• Sample temperature: -10℃～80℃

• Resolution: Better than 10%

• Coincidence error limit: 10000 particles/ml (5% coincidence error)

• Data storage: 100 sets

• Repeatability: RSD＜2% (particle count >5000 particles/sampling volume)

• Display and operation: 5.6-inch true-color LCD (640*480 dots)

• Chinese graphical menu interface with touch screen operation

• Power supply: 100V-26SVAC (50Hz-60Hz), ＜80W

• Operating temperature: -20℃～50℃

• Dimensions: 320mm*430mm*590mm

• Weight: 30Kg
