Artificial mains network system

Product Introduction

       The artificial mains network is an indispensable device for measuring conducted interference of electrical equipment. Its function is to provide a stable impedance range for the equipment under test in the radio frequency range, isolate the high-frequency signals on the power grid from the interference signals generated by the equipment under test, and then couple the interference signals to the interference test receiver.

       The artificial mains network provides three ports:

       1. Power input

       2. Power output for the equipment under test

       3. Interference output connected to the measuring equipment

       The KH3780 and KH3781 products are single-phase V-type artificial mains networks for different frequency bands. The standards comply with the technical specifications and requirements of the international "CISPR" publication 16 and the national standard GB/T6113-95. The design fully considers the convenience and safety of operation. For the power input and output, they are divided into two parts: for continuous currents below 10A, power connectors are used; for high-current applications, three terminals (L, N, E) are selected for input and output, connected with interlocking wires, and an air switch is used for safe and convenient operation.

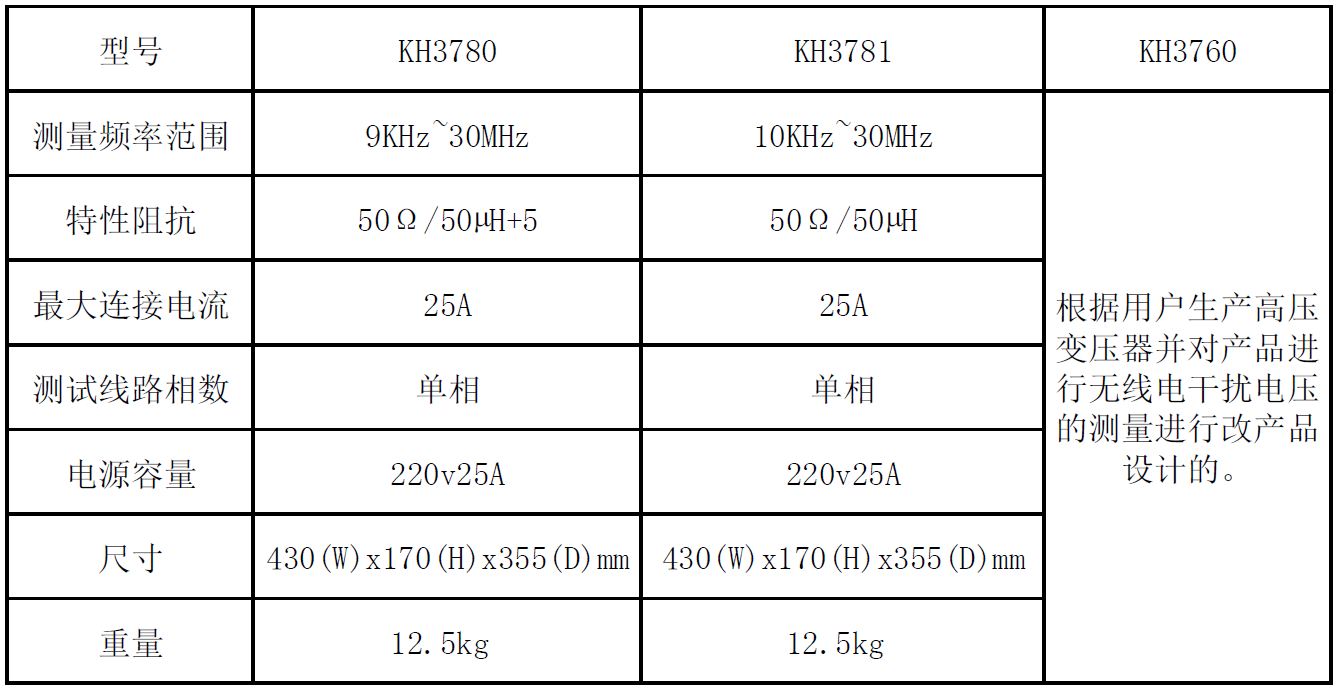

Main Technical Characteristics (Compliant with GB/T 6113-95 and "CISPR" Technical Specifications)
