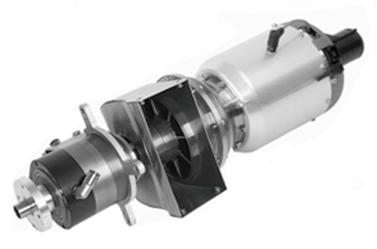

9kW Turbine Power Generation Device
Manufacturing Principle
The 9kW turbine power generation device is composed of an engine, a speed reducer, and a generator. The micro gas turbine shaft engine consists of a single-stage centrifugal compressor and a single-stage turbine. The generated gas drives the free turbine to drive the generator to operate. The brushless DC integrated starter-generator integrates the functions of starting the engine and generating electricity, and adopts a full-authority digital electronic control system.
Main Features
It features fast starting, applicability in high-altitude areas, high fuel efficiency, etc.
Technical Parameters
Project | Specification | Project | Specification |
Rated Power | 9kW | Starting Power Supply | 9V battery |
Fuel | Kerosene mixed with 5% lubricating oil or high-quality diesel | Starting Time | 15s |
Maximum Turbine Speed | 156,000r/min (first stage)、8,500r/min (second stage) | Exhaust Temperature | (480～730)℃ |
Maximum External Dimensions | 390mm (Length) × 140mm (Width) × 83mm (Diameter) | ||
