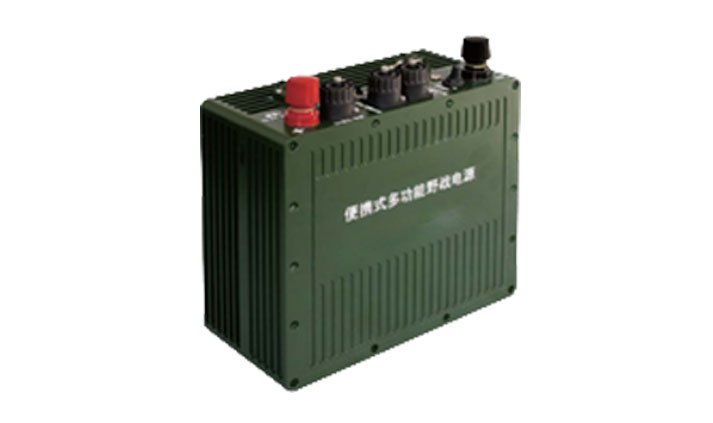

Portable Multi-functional Field Power Supply
Overview
The portable multi-functional field power supply system uses lithium-ion/lithium-polymer batteries with multiple process improvements as the energy storage core, with an original same-port high-current charge/discharge protection circuit module as the control management unit, built-in microcontroller, and self-developed military-standard DC-AC sine wave inverter circuit and DC-DC module, forming a complete portable integrated power supply system.
Application Scope
This system is a backpackable reinforced integrated power supply system for squad combat patrol teams. The product can not only power backpack radios, handheld radios, mobile phones, PDAs, Beidou terminals, and computers but also provides standard sine wave 220VAC output and has a built-in charger. It can also be used for vehicle starting in emergencies. The energy source of this power supply system is an improved lithium iron phosphate battery. The main unit weighs less than 8 kg and can support normal use of backpack radios for 3-5 days.
Main Performance Parameters
•Nominal capacity: 45AH/13.6V (2200 kJ)
•Output 1: 13.6VDC continuous 16A
•Output 2: 13.6VDC continuous 50A, 300A/15 seconds, 400A/5 seconds, protection trigger current 500A
•Output 3: 5VDC/2A; USB interface or user-defined interface
•Output 4: 220VAC, 1A continuous; sine wave, THD<3%; protection trigger current 1.5A
•Main unit dimensions: 269mm*241mm*127mm (excluding connectors, switches, and handles)
•Operating temperature: -40°C to +55°C (low-temperature type, comprehensive type), -25°C to +55°C (starting type)
•Operating humidity: 0～100% (submerged)
•Operating altitude: 0～6000 meters, exposed environment
•Charging time: fast charge 1 hour, standard charge 7-8 hours
•Water and dust resistance: IP*67 (underwater 1 meter for 30 minutes)
•External fixing holes: 6-M4*6mm
•Device weight: 7.8KG (excluding accessories)
