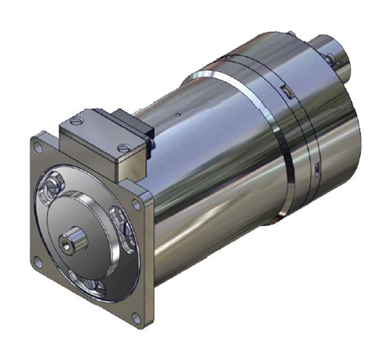

Launcher erecting motor
Technical data
| Product Model | TZ154.B02 | Erection Motor for Launch Vehicle |
| Performance Parameters | Dimension | 234×192×688 |
| DC Rated Voltage | 540VDC | |
| Rated/Peak Power | 65/100Kw | |
| Rated/Peak Torque | 155/280N.m | |
| Rated/Peak Speed | 4000/4500rpm | |
| Maximum Motor Efficiency | ＞96% | |
| Operating Temperature Range | -40℃～60℃ | |
| Motor Weight | 62.8kg | |
| Cooling Method | Natural Cooling | |
| Protection Class | IP67 | |
| Insulation Class | H |
