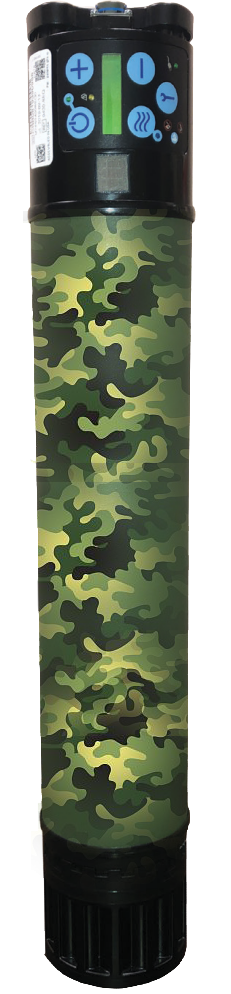

Portable Oxygen Concentrator
Application Scope
The portable oxygen concentrator is specially developed for troops in special environments as individual oxygen supply equipment. It can be used in extreme conditions (high altitude, low temperature, high heat, sand, dust, no mains power, remote operations, medical rescue) and other environments to provide oxygen for soldiers. It is used for individual oxygen supply, centralized oxygen supply, casualty rescue, helicopter platforms, underwater confined spaces and other special environments. Its core technology is high-efficiency, low-power compressor technology and intelligent oxygen separation supply system, with strong oxygen supply capacity and BTP (Body, Temperature and Pressure) compensation capability, which adjusts oxygen delivery according to the difference between environmental conditions and the user's (patient's) lung conditions (37°C).
Basic Parameters
| Item | Specification | Item | Specification | Item | Specification |
| Noise | ＜59dB (A) @ 3LPM | Weight (with battery) | 5.56kg | Rated Power Consumption | ≤130W |
| Oxygen Concentration | 93% ± 3% under all flow settings | Operating Environment | -20°C～40°C | Rated Battery Operating Time | 30min (maximum oxygen generation flow per battery) |
| Maximum System Pressure | 103.4kPa | Storage Environment | -30°C～60°C | Battery Life | No less than 80% of the rated capacity after 200 charge - discharge cycles |
| Oxygen Output Pressure | Rated 27.5kPa | Ambient Pressure Range | -381m～6000m | Dimensions (cm) | 68.1 (length) × 11.1 (diameter) |
