Fan Unit

Overview

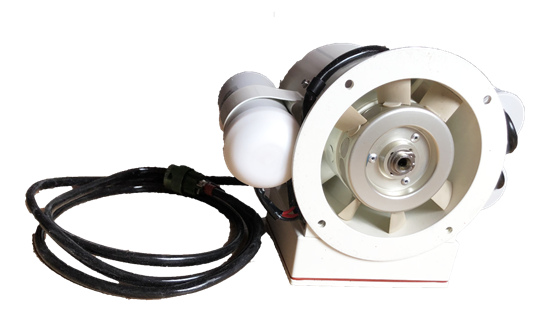

This product is an assembled axial fan unit, consisting of end cover assembly, stator assembly, rotor, fan blade assembly, etc.

Main Functions

When powered on, the fan unit can generate strong airflow to provide cooling air for a radar system. This airflow passes through the cooling liquid heat exchanger of the transmission system, carrying away the heat from the cooling liquid, thereby ensuring the radar transmission system operates at optimal temperature.

Main Technical Specifications

•Input voltage: 115Vac; 400Hz

•Rated current: ≤15A

•Rated speed: ≥22000r/min

•Weight: ≤5kg

•Outlet static pressure at zero flow (back pressure): 3200Pa (host test)

•Maximum flow at zero outlet static pressure: ≥325L/s (host test)

•Flow rate: ≥200L/s (host test, at rated condition with outlet static pressure of 2500Pa)

•Noise ≤92dB (host test)

•Maximum output power: 1.2KW (host test)

•Power consumption: ≤1821W

•Protection level: IP44
