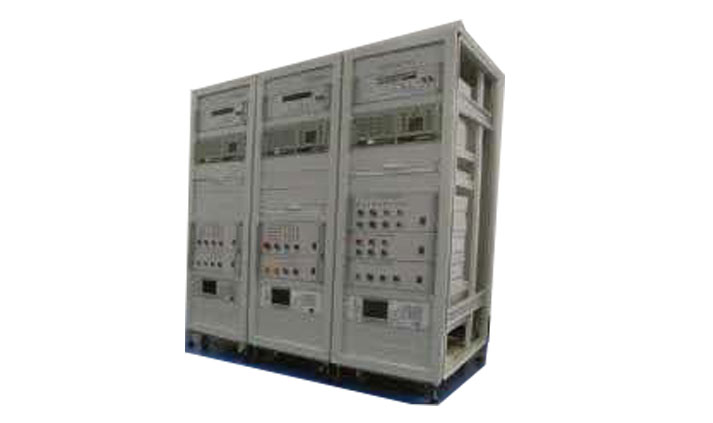

Omnidirectional Radar Warning Receiver Integrated Test System

Overview

       This product consists of industrial control computer, microwave signal generator, data acquisition switching unit, receiver, control box detection adapter, digital analyzer detection adapter, oscilloscope, printer, etc.

It can achieve the following functions:

1. Separate detection for aircraft using omnidirectional radar warning receiver

2. Performance detection for aircraft with restored performance or troubleshooting

3. The system has self-test capability

Main Technical Specifications

•Detection capability:

Stable fault detection rate 100%

Probability of fault isolation to one SRU ≥85%

Probability of fault isolation to two SRUs ≥90%

Probability of fault isolation to three SRUs =100%

•Notes:

1. It's allowed to open the unit under test and use oscilloscope or multimeter to check and determine the fault location.

2. The average fault detection time for completing the highest time-limited inspection of a single unit is less than 30min.

•Maintainability:

1. Mean corrective maintenance time ≤90min.

2. Maximum corrective maintenance time ≤270min.

•Service life: >10 years.

•Calibration cycle: 2 years.

•Power supply: AC220V/50Hz, 1000W; DC27V, 300W.

•Storage temperature: -20~~60℃, relative humidity ≤85%.

•Operating temperature: The tester can work normally under environmental temperature of 0~~40℃ and relative humidity of 5~~90% (non-condensing).

•Recommended operating environment temperature: 10~~25℃, relative humidity<80%.

Special Features

In addition to general instruments and computers, the test system is also equipped with two sets of unit detection adapters and one set of data acquisition/switching unit.
